E30 Agricultural Drone UVA Crop Spraying Farm Drones 30L

No.ED05
Specifications
Payment Terms:
T/T
Delivery Time:
30 Days
Structural layout:
Six-axis layout
Medicine box capacity:
30L
Single Operation Area:
3.3-5 acres ( 16 min)
HS Code:
8806100000
Expanded size:
1900mm×1825mm×855mm
Folded size:
1190mm×570 mm×855mm
Warranty Period:
12 Months
  • E30,ESER,E30
  • E30,ESER,E30

Description

Product Description

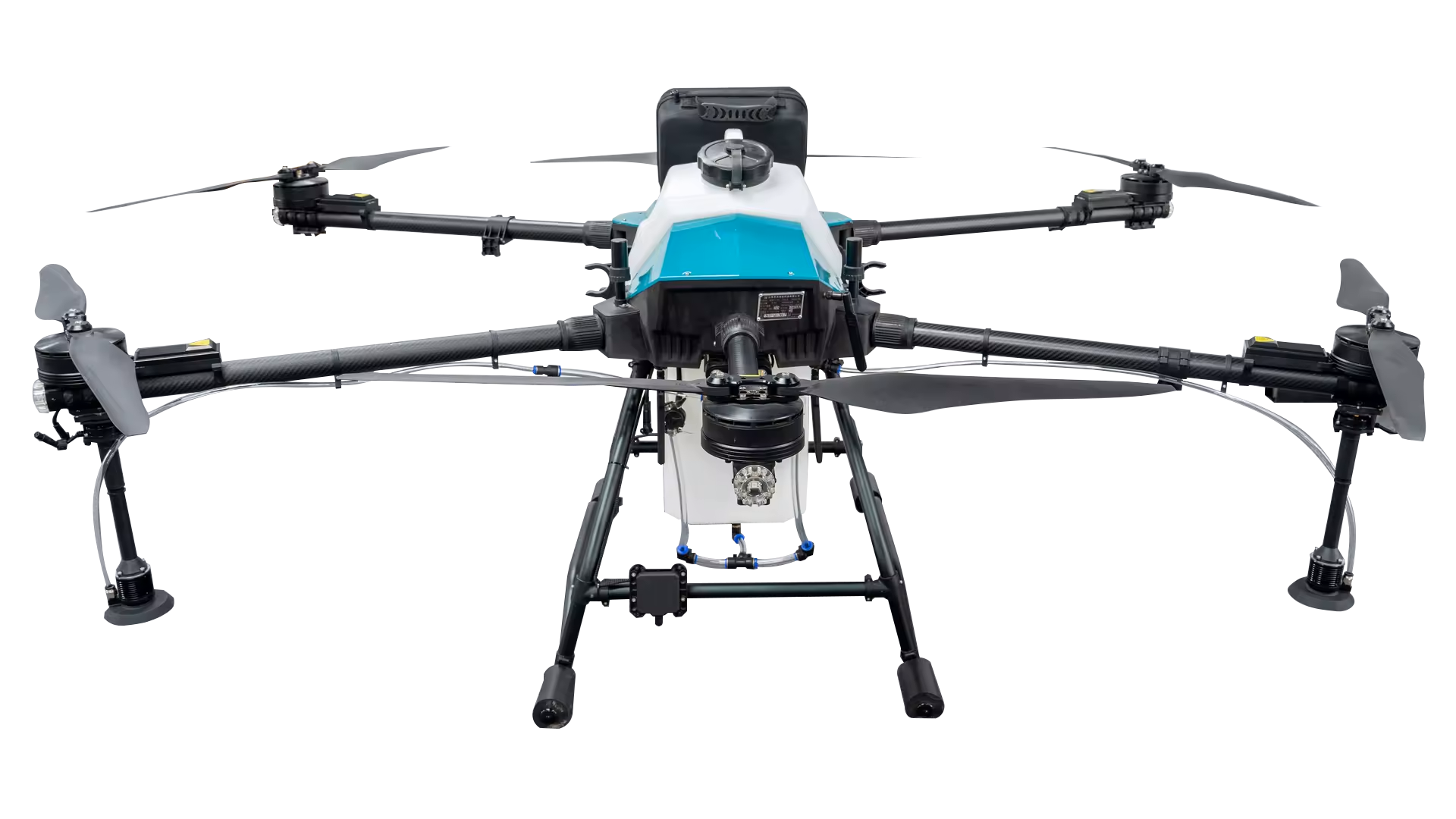

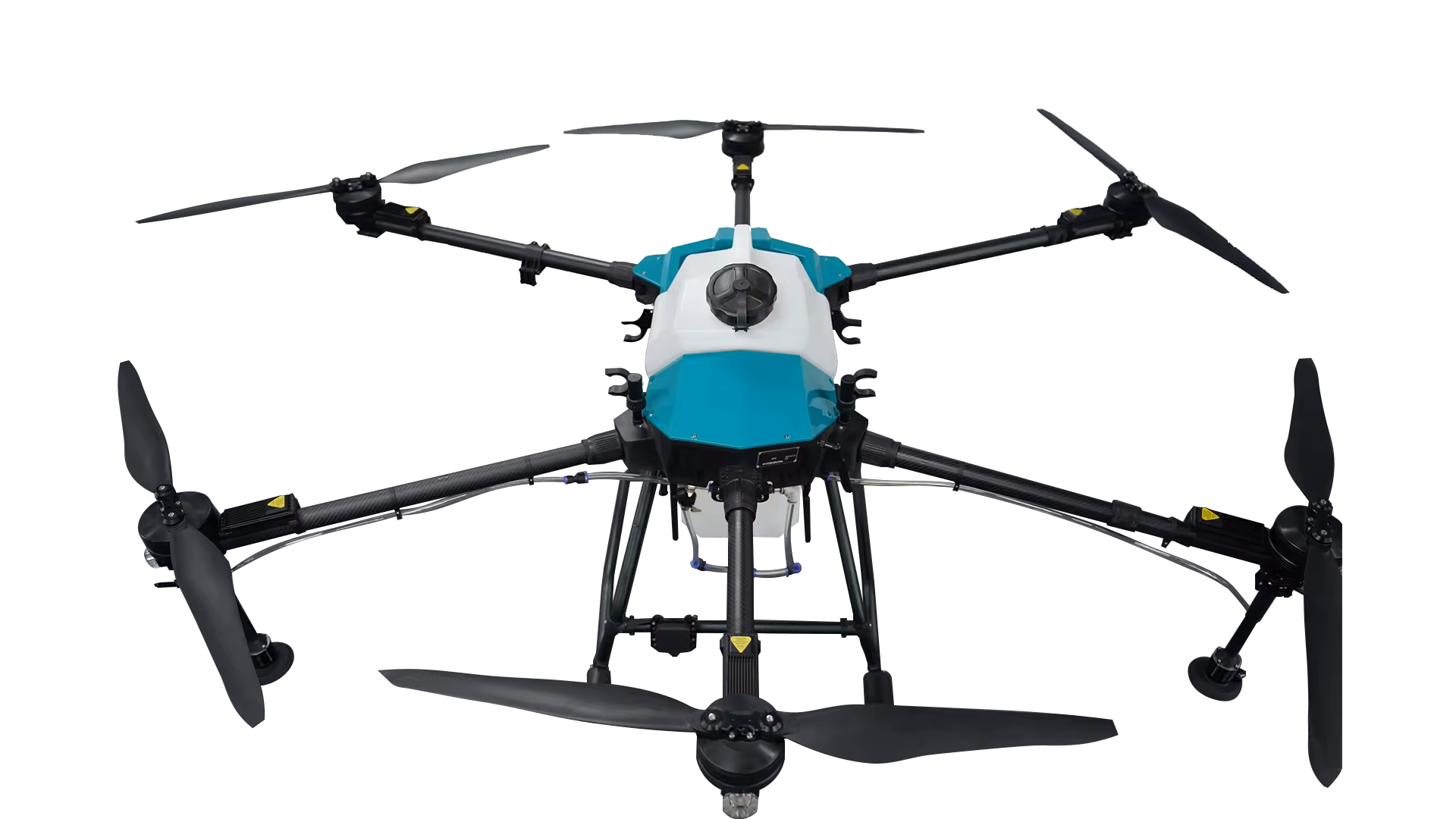

The E30 agricultural drone is the latest in ESER Drones third-generation product range, designed for modern agricultural operations with advanced features and robust construction. The 30L pesticide tank ensures long-duration spraying sessions, minimizing interruptions for refilling. It is perfect for larger agricultural fields, providing consistent and efficient spraying.

Technical Specifications


E30 Six-axis layout Main Parameters

Aircraft Axle Distance 1900mm Wind Resistance Level 5-6 Levels
Cruising Speed 5-10m/s Endurance Time 8-22min
Empty Machine Weight 34.5kg Operating Temperature -15℃~55℃
Take-off Weight 73.6kg Spray Range 10-12m
Spray Height 1.5-2.5m Nozzle Type Pressure/Centrifugal
Water Tank Capacity 30L Battery Configuration 28000Mah(14S)
Spreading Capacity / Charging Time 15-25min
Multiple Flight Mode Options: Full Autonomous Operation Mode, A-B Point Operation Mode, and Manual Operation Mode.

Equipment Features

1. High-Performance Materials and Robust Structure
The E30 agricultural UAV uses a combination of carbon fiber and aviation aluminum, ensuring durability in challenging environments. Its folding truss structure allows for quick folding, facilitating easy transportation and storage.

2. Remote Control and Long Endurance
Featuring a smart remote controller with a 5.5-inch high-brightness display and the latest APP control software, the E30 offers smooth and stable operation. Its endurance time exceeds 7 hours, meeting the demands of long-duration, high-intensity tasks.

3. Advanced Monitoring and Obstacle Avoidance
Equipped with an FPV HD camera for real-time flight monitoring, and front and rear obstacle avoidance radars, the E30 ensures flight safety by effectively avoiding common obstacles.

4. Intelligent Flight Path and Automatic Return
The advanced flight path operation mode maps obstacles for fully autonomous operations. It includes precise pesticide usage prediction, optimizing efficiency.  Multiple return functions ensure safe returns in all scenarios.

5. Efficient Spraying System
The E30 features high-pressure and centrifugal nozzles, with spraying widths of 5 to 7 meters and heights of 1.5 to 2 meters. The 30L pesticide tank reduces refill frequency, Ensures long-duration spraying sessions, minimizing interruptions for refilling.

6. Reliable Protective Design
With an IP6X rating, the E30 is dustproof, waterproof, and corrosion-resistant.  Core components have triple protection, ensuring reliable operation in various environments.

7. Simple Operation
Designed for user-friendly operation, the E30 makes it easy for solo operators to manage.  For more details on its simple operation, visit our Agriculture Solutions page.



Application scenario

Farmland Inspection, Crop Spraying, Rice Seeding, Irrigation Management, Agricultural Product Transportation

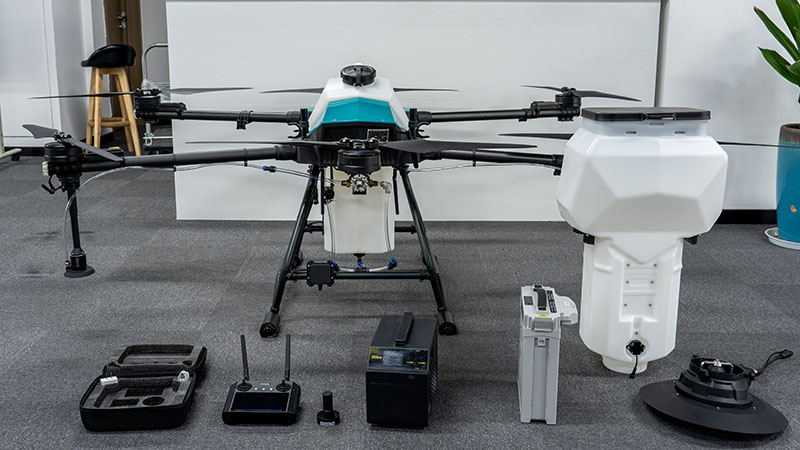

Optional accessories for the machine



Optional Accessories Upgrade Components Consumable Parts
Spare Battery Terrain Radar Motor
Charger Obstacle Sensors Water Pump
Propeller Guard Upgraded Battery Propellers
Enhanced Propellers Upgraded Materials Landing Gear
Low-Noise Propellers High-Performance Motor Body Shell
  Enhanced Flight Control System Arm Components
  GPS Module Nozzles and Spray Rods
  Software Upgrade
