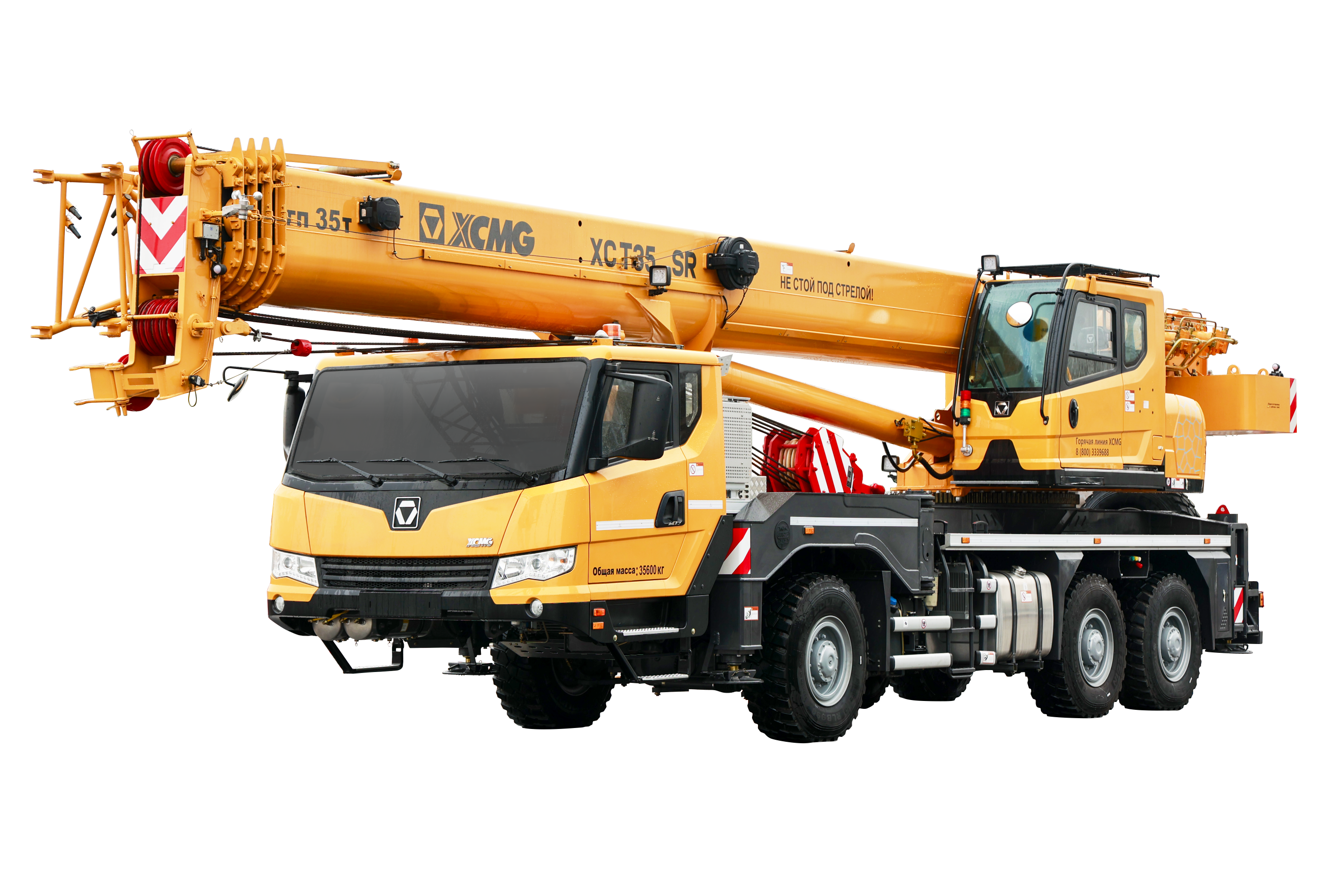

XCT35_SR is a 3-axle 35-ton truck crane with high adaptability to the job site and a wide range of acceptable operating conditions.
It features a 44-meter, 5-section main boom, an 8.3-meter fixed boom, a fixed 5.5-ton counterweight, a V-shaped diesel engine paired with a 9-speed gearbox, 3-axle type K outriggers, and all-wheel drive.
| Item |
Unit |
Parameter |
| Max. load capacity |
t |
35 |
| Telescopic boom |
m |
44 |
| Number of axles |
- |
3 |
| Max. hoist height |
m |
51.2 |
| Max.load moment |
kN.m |
1240 |
| Drive engine model |
- |
SC9DF340Q5 |
| Drive engine power |
kw |
251 |
| Drive/Steering |
- |
6×2 |
| Driving speed |
km/h |
80 |
| Dead Weight in Travel State |
kg |
35600 |
| Dimensions |
mm |
13480×2550×3650 |
| Emission standard |
- |
Euro V |
