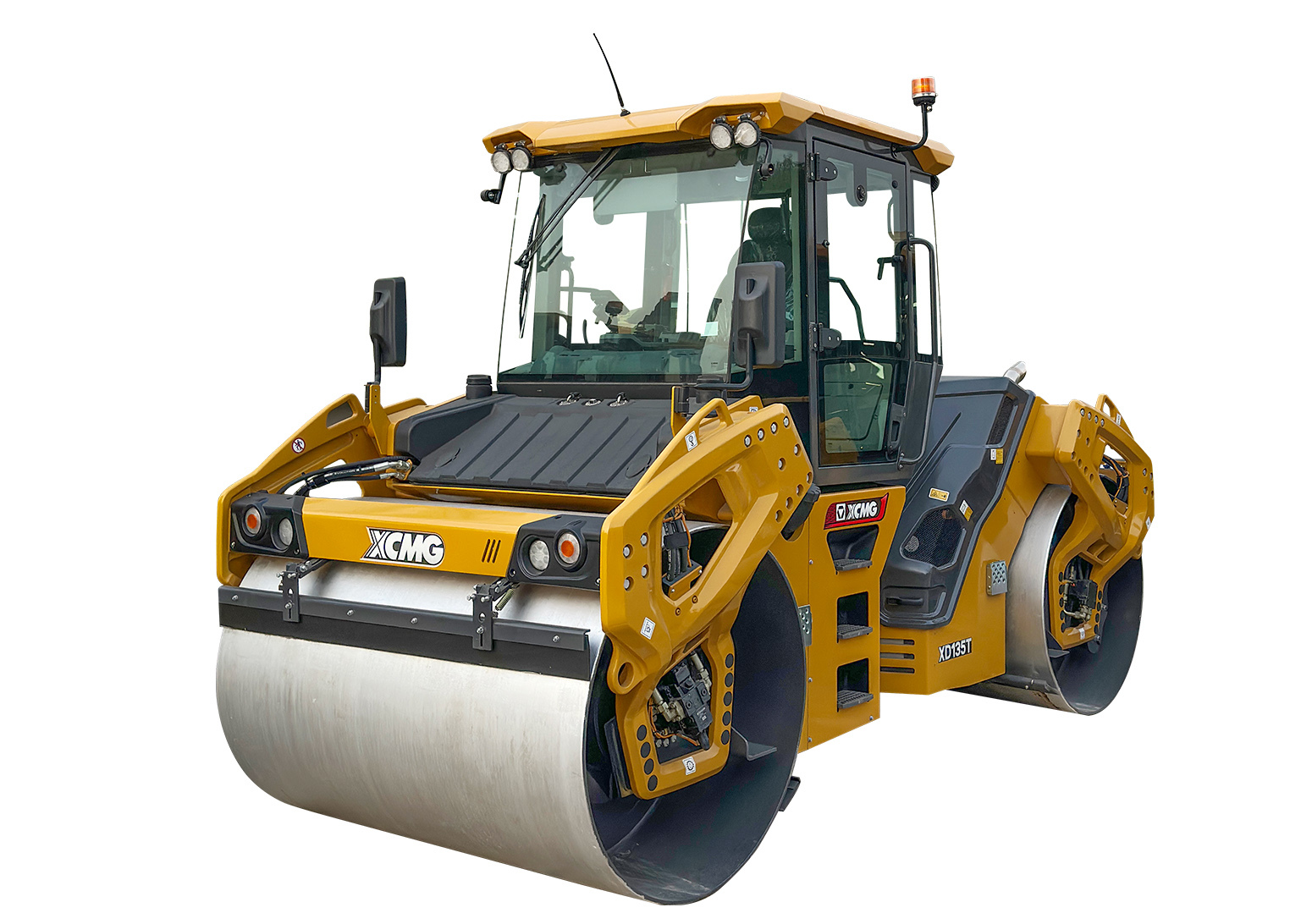

XD135T vibratory roller meets the requirements of high-end customers and special working conditions in the North American market, is suitable for compaction operation of bitumen paving, and can compact paving of different materials and thicknesses. It is especially suitable for pavement compaction operation of large-scale projects such as roads, parking yards, airports, etc.
| Item |
Unit |
Parameter |
| Operating weight |
kg |
13000 |
| Static linear load |
N/cm |
318/318 |
| Vibration frequency |
Hz |
42/63 |
| Excitation force |
kN |
120/88 |
| Drum width |
mm |
2000 |
| Theoretical gradeability |
% |
35 |
| Model |
- |
F3.8(Stage V) |
| Rated power |
kW |
115 |
| Rated speed |
r/min |
2200 |
| Emission |
- |
EU Stage V / T4F |
