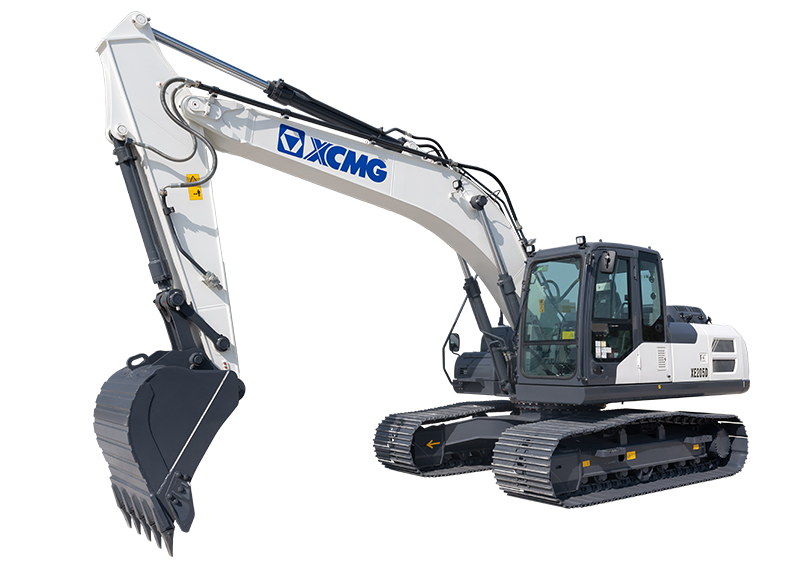

XE205D adopts 135kWlow-speed and high-torque engine made by XCMG. Wth customized power and fuel consumption characteristic curves, it hassufficient power and low fuel consumption. The new type radiator with integral brazing technology and robot welding is equipped with a positivepressure degassing expansion tank to improve the service life of the pump,.tcan quickly remove the gas in the engine and the watervay, reduce rust.and meet the requirements of 50 °C environment. It can be widely applied to farmland water conservancy, river dredging and municipal construction. It can also realize different operations such as excavating, crushing and dismantling.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
21500 |
| Rated power |
kW/rpm |
135 |
| Engine model |
- |
Cummins QSB7 |
| Bucket capacity |
m³ |
1 |
| Emission standard |
- |
National Stage Ⅲ |
| Maximum torque/speed |
N.m |
740/1250 |
| Displacement |
L |
6.7 |
| Travel speed |
km/h |
5.7/3.1 |
| Swing speed |
r/min |
12 |
| Bucket digging force |
kN |
157 |
| Arm digging force |
kN |
116 |
