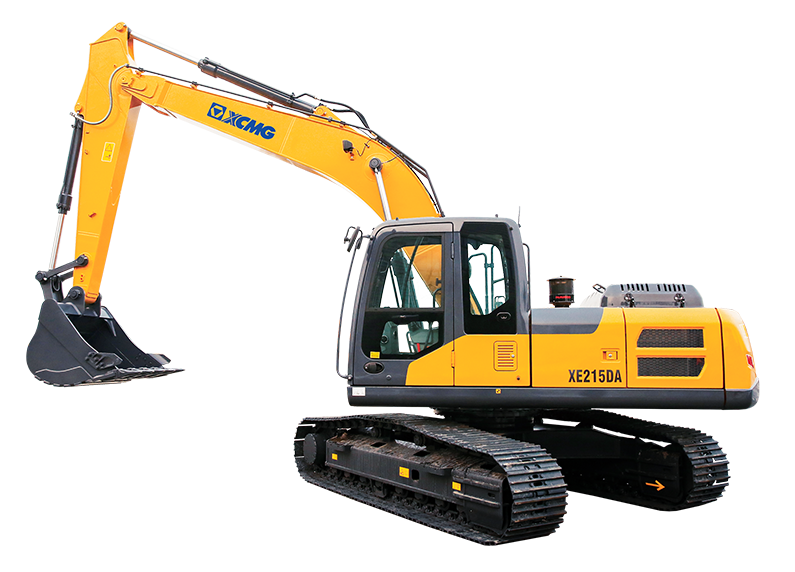

XE215DA uses the latest separate pump independent control system. Wih the imported new main pump, main valve, and electronic control bucketrod. XE215DA enioys effciency improvement of 7%, ollconsumption reduction of 10%, and great controllability improvement for the reduction ofimpacts from bucket rod start and stop, boom start and stop, etc. The large-diameter bucket cylinder and bucket rod cyinder can help improve thedigging force by more than 5%. It can be widely used for irigation and water conservancy. river dredging, municipal construction and smallmineconstruction, meeting requirements of different operations such as digging, breaking and dismantling.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
21900 |
| Rated power |
kW/rpm |
135 |
| Engine model |
- |
Cummins QSB7 |
| Bucket capacity |
m³ |
1.05 |
| Emission standard |
- |
National Stage III |
| Maximum torque/speed |
N.m |
740/900-1600 |
| Displacement |
L |
6.7 |
| Travel speed |
km/h |
5.4/3.1 |
| Swing speed |
r/min |
11.8 |
| Bucket digging force |
kN |
149 |
| Arm digging force |
kN |
111 |
