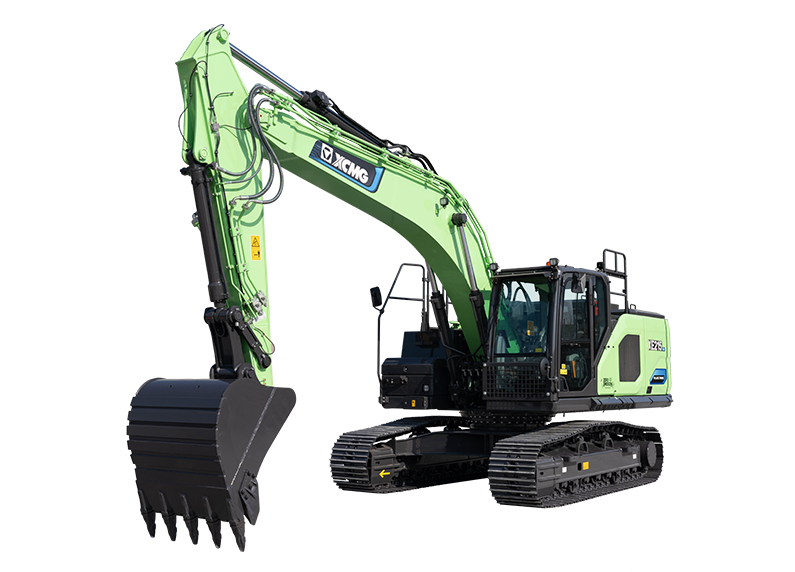

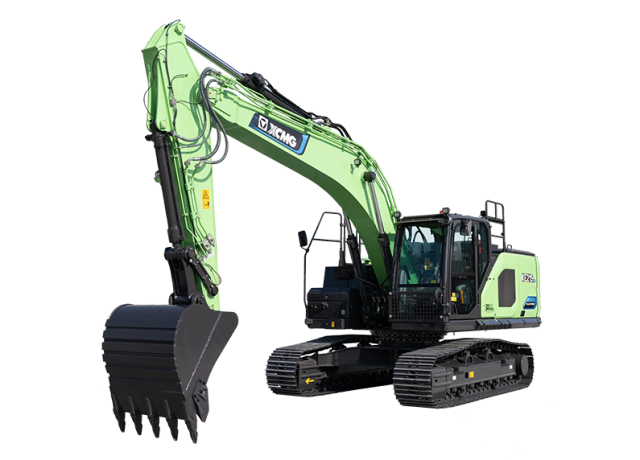

XE215EV is equipped with high- safety ithium iron phosphate battery, IP67 protection for key electrical components, safe and reliable. Pemanentmagnet synchronous motor large displacement large dlameter main vave, hgher overalloperatng effciency. high stablty and low cost Mutpleattachment control modes "one machine with multiple functions", automatic lubrication. 10-inch touch screen instrument, integrated menu display.high-defnition camera,easy operation and comfortable driving Strengthened fumtable main structure. good performance; new optimized boom anddipper rod. stress reduction of 25% It can be widely used in urban construction, mine construction, cargo yard loading and unloading. metalsmetingcleaning, tunnel construction and other projects.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
23500 |
| Rated power |
kW/rpm |
140 |
| Engine model |
- |
/ |
| Bucket capacity |
m³ |
1 |
| Emission standard |
- |
/ |
| Maximum torque/speed |
N.m |
/ |
| Displacement |
L |
/ |
| Travel speed |
km/h |
5.4/3.3 |
| Swing speed |
r/min |
12 |
| Bucket digging force |
kN |
149 |
| Arm digging force |
kN |
111 |
