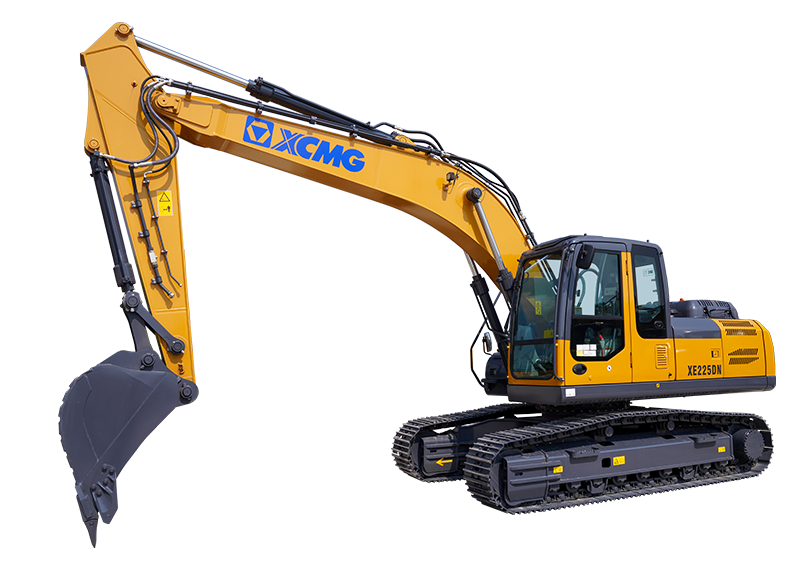

With the Pertkins high-power engine, XCMG proprietary and exclusive technology used, XE225DN features with low speed and high torque, high-pressure injection, and can realize stronger power and better fuel economy. New high-eficiency main pump is fuly upgraded, wih large displacement.7% higher than that of the previous generaton, The turntable side beam uses the D-tube structure to mprove ts ability of resisting extemal impact. XE225DN can be used for irigation and water conservancy, river dredging. municipal construction and smallmine construction, realizing differentoperations such as digging, breaking and dismanting.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
22500 |
| Rated power |
kW/rpm |
106 |
| Engine model |
- |
Perkins 1104D-E44TA |
| Bucket capacity |
m³ |
1 |
| Emission standard |
- |
National Stage III |
| Maximum torque/speed |
N.m |
516/1400 |
| Displacement |
L |
4.4 |
| Travel speed |
km/h |
5.3/3.1 |
| Swing speed |
r/min |
11.8 |
| Bucket digging force |
kN |
149 |
| Arm digging force |
kN |
111 |
