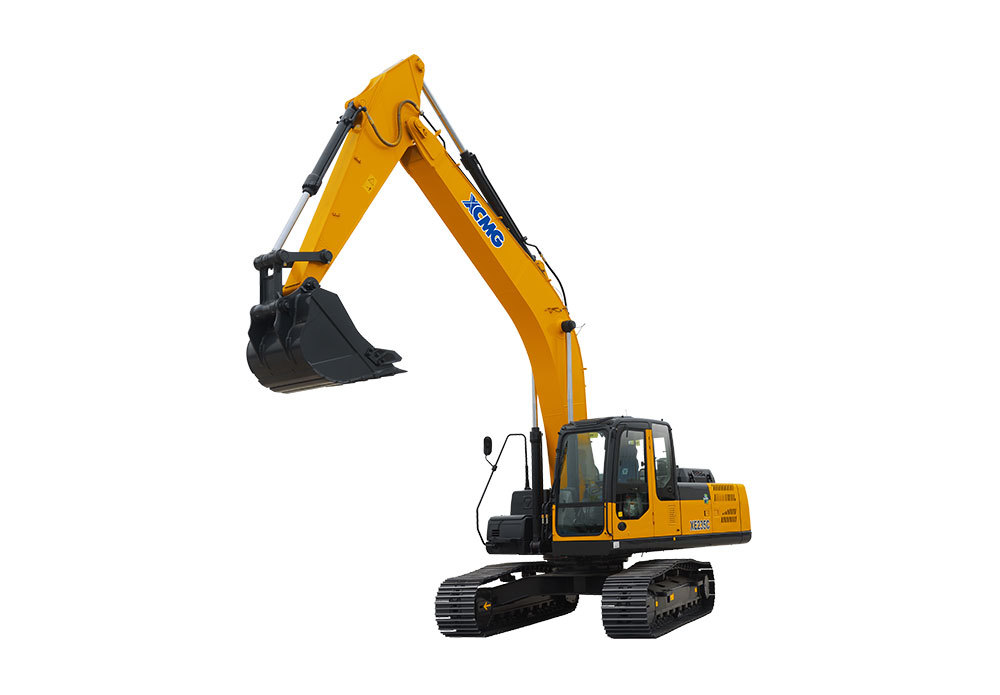

With imported 128 5k high- power engine and CMG exclusve technology. XE235C features low speed and high torque, high-pressure ijection.stronger power and befter fuel economy. New high-eficiency man pump is fuly upgraded., ts displacementis 7% higher than the previous generatonThe buter dish is changed from welding parts to integral stamping parts, which ensures the instalation roundness of the sealing ring and improves thesealing performance. It can be used in farmland water conservancy, iver dredging, municipal construction and small scale mining construction.realizing different operational requirements such as excavation, crushing, demolition.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
23500 |
| Rated power |
kW/rpm |
128.5 |
| Engine model |
- |
ISUZU CC-6BG1TRP-08 |
| Bucket capacity |
m³ |
1 |
| Emission standard |
- |
National Stage II |
| Maximum torque/speed |
N.m |
637/1800 |
| Displacement |
L |
6.494 |
| Travel speed |
km/h |
6.0/4.0 |
| Swing speed |
r/min |
12.1 |
| Bucket digging force |
kN |
176 |
| Arm digging force |
kN |
125 |
