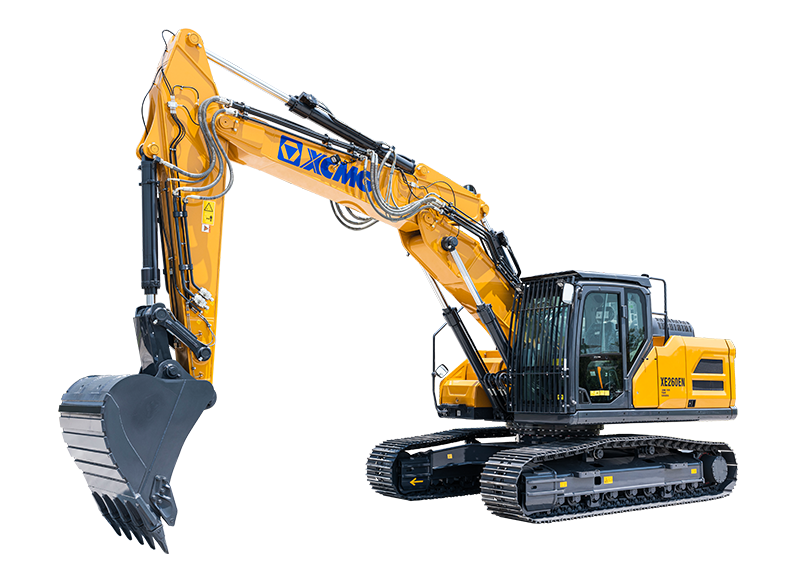

As standard, XE260EN has single and dual way auxiliary hydraulic pipelines (AUX1) for attachments such as hammer, grapple; and dual way auxiliary hydraulic pipelines (AUX2) for rotating attachments such as clamshell and shear. The PTO pump is adopted as standard to independently control the rotation of the multi-function attachment to reduce interference between complex actions. The CAE-designed X-shape undercarriage enables even weight distribution, increases stability and durability, and prevents damage from rocks and debris. Easy access to all compartments. Additionally, maintenance and service data are directly available from the monitor.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
26850 |
| Rated power |
kW/rpm |
145 |
| Engine model |
- |
Cummins B6.7 |
| Bucket capacity |
m³ |
1.2 |
| Emission standard |
- |
Euro V |
| Maximum torque/speed |
N.m |
847/1500 |
| Displacement |
L |
6.7 |
| Travel speed |
km/h |
5.2/3.3 |
| Swing speed |
r/min |
10.6 |
| Bucket digging force |
kN |
170 |
| Arm digging force |
kN |
120 |
