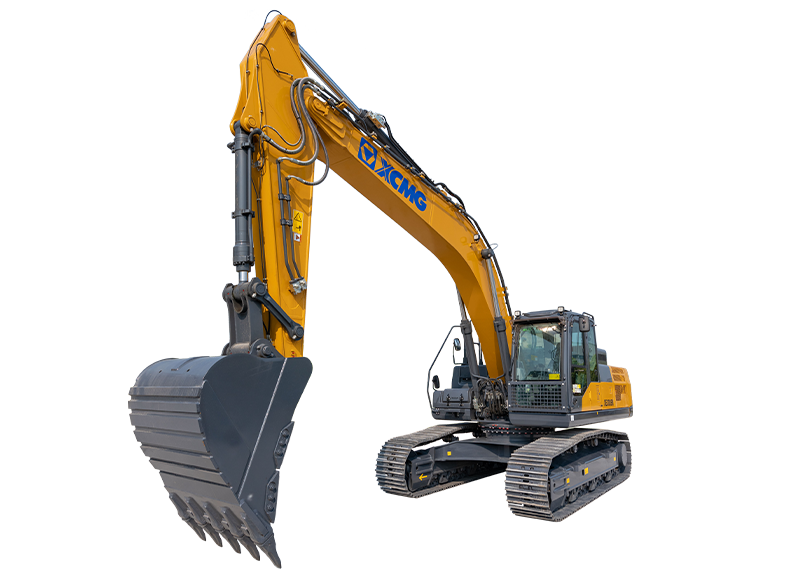

With high pressure common -rail electronic injection engine that meets Euro V emission standards equipped, XE300EN achieves the best fuelinjection control improving combustion eficiency and better energy -saving and envronmentaly protection. Inteligent electronic control system can achieveoptimal matching control of engine speed and hydraulic pump, realizing dynamic balance of power and hydraulic system. Wth remote faut diagnosisfunction enabled, the operation proces willbe recorded at any time. The higher the peration eficiency is, the lower the fuel consumption is. The fuelconsumption is ahead of other models of the same tonnage.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
32500 |
| Rated power |
kW/rpm |
173 |
| Engine model |
- |
Cummins B6.7 |
| Bucket capacity |
m³ |
1.6 |
| Emission standard |
- |
Euro V |
| Maximum torque/speed |
N.m |
949/1500 |
| Displacement |
L |
6.7 |
| Travel speed |
km/h |
5.3/3.2 |
| Swing speed |
r/min |
10.3 |
| Bucket digging force |
kN |
206 |
| Arm digging force |
kN |
150 |
