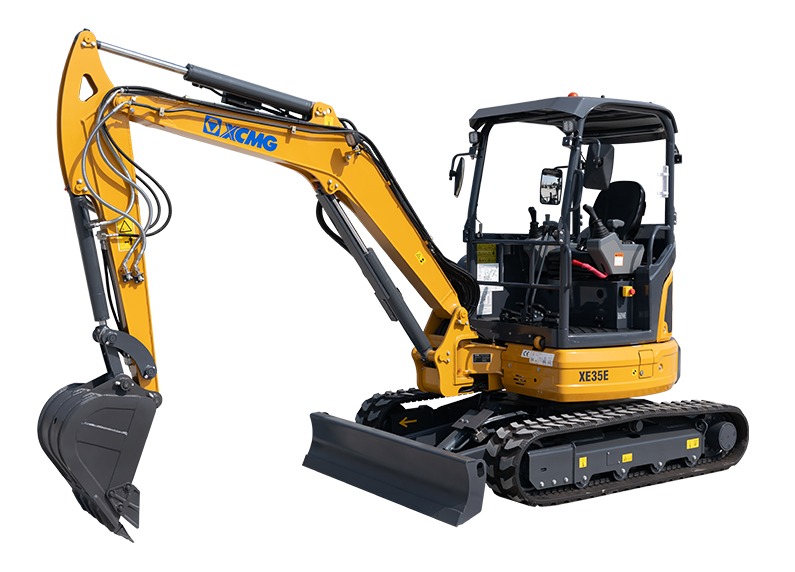

XE35E (Canopy), combined with multiple-function operating accessories, can complete tasks of digging, loading, leveling, trenching, crushing, drilling, shearing and lifting. It is widely used in construction and production fields of hydropower, transportation, municipal administration, garden, farmland transformation, oil pipeline, etc. The configured canopy ceiling meets TOPS/ROPS/OPG security certificates. The cab can be turned forward by 35°, so the whole machine can be checked thoroughly. Together with the fully-open machine cover, XE35E can be equipped with auxiliary hydraulic pipelines, which will make the installation of hydraulic coupler and hydraulic hammer available, and thus expand the machine's adaptability to different working conditions.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
4200 |
| Rated power |
kW/rpm |
18.2 |
| Engine model |
- |
Yanmar 3TNV88F |
| Bucket capacity |
m³ |
0.12 |
| Emission standard |
- |
Euro V |
| Maximum torque/speed |
N.m |
85.3-94.2/1320 |
| Displacement |
L |
1.642 |
| Travel speed |
km/h |
3.6/2.2 |
| Swing speed |
r/min |
9 |
| Bucket digging force |
kN |
28.6 |
| Arm digging force |
kN |
20.3 |
