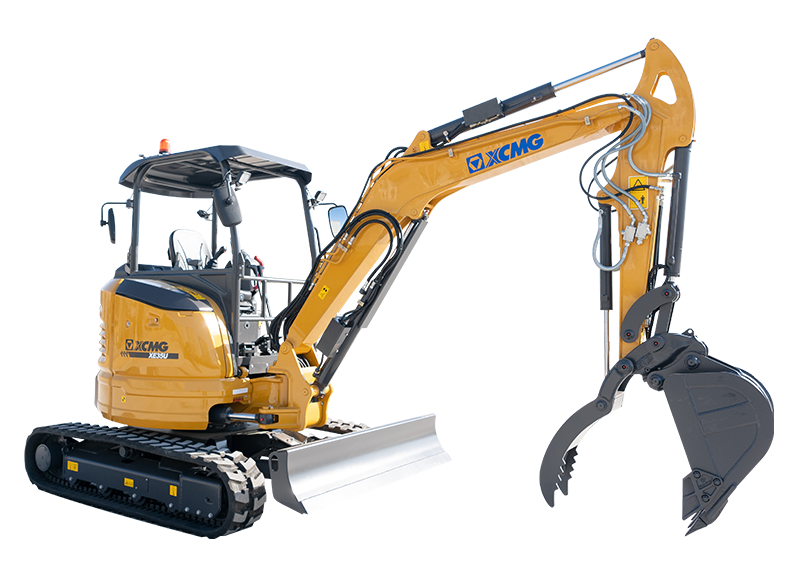

The XE35U comes with every feature you expect from a mini excavator in its tonnage. Variable angle boom, 75° to the left and 50° to the right, and zero swing tail give you an edge when undertaking operations wherever space is confined. Powered by a reliable 24.4 hp YANMAR engine, you can count on it to finish tough jobs in various operating conditions. When it comes to efficiency, versatility is a critical factor. That’s why the machine is compatible with multiple attachments that can be installed within a short period of time with its hydraulic quick coupler. You will make full use of every second in the jobsite.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
4200 |
| Rated power |
kW/rpm |
18.2 |
| Engine model |
- |
Yanmar 3TNV88F |
| Bucket capacity |
m³ |
0.12 |
| Emission standard |
- |
Tier 4 Final |
| Maximum torque/speed |
N.m |
85.3-94.2/1320 |
| Displacement |
L |
1.642 |
| Travel speed |
km/h |
3.6/2.2 |
| Swing speed |
r/min |
9 |
| Bucket digging force |
kN |
28.6 |
| Arm digging force |
kN |
20.3 |
