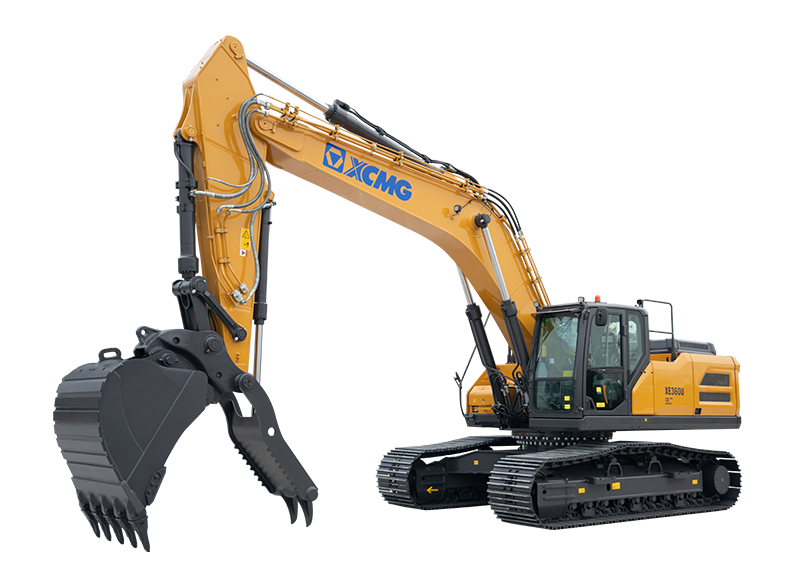

The newly upgraded XE360U builds on its reputation as one of the most sold and appreciated large excavators of XCMG. All systems have been designed on the basis of harmonious matching of sufficient power, hydraulic flow, versatility, low fuel consumption and environmental protection features.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
39600 |
| Rated power |
kW/rpm |
252 |
| Engine model |
- |
Cummins L9 |
| Bucket capacity |
m³ |
1.8 |
| Emission standard |
- |
Tier 4 Final |
| Maximum torque/speed |
N.m |
1526/1400 |
| Displacement |
L |
8.9 |
| Travel speed |
km/h |
5.4/3.2 |
| Swing speed |
r/min |
9.9 |
| Bucket digging force |
kN |
249 |
| Arm digging force |
kN |
173 |
