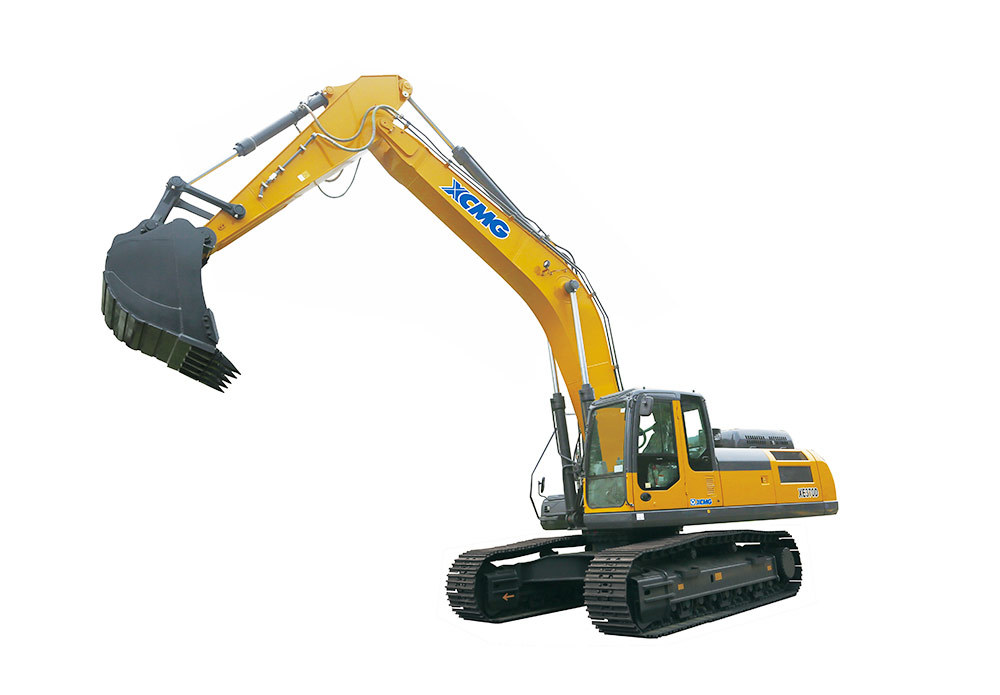

With low- speed and high-torque engine, XE370D has excellent power output, good power curve, and fuel consumption curve, applies to actuaxcavator working conditions, and is characterized by strong power and fuel saving. The newest generation of controller and optimized matchingbetwveen the hydraulic pump and engine can fuly use the engine power, reduce the engine output power waste, and further reduce the fuelconsumption. The lengthened and reinforced chassis system is standardly configured, so the working stabity in mines is good, and the reliabity ishigh. With heavy reinforced boom, bucket rod and bucket, XE370D can keep strong digging ability in tough working conditions.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
21900 |
| Rated power |
kW/rpm |
135 |
| Engine model |
- |
Cummins QSB7 |
| Bucket capacity |
m³ |
1.05 |
| Emission standard |
- |
National Stage III |
| Maximum torque/speed |
N.m |
740/900-1600 |
| Displacement |
L |
6.7 |
| Travel speed |
km/h |
5.4/3.1 |
| Swing speed |
r/min |
11.8 |
| Bucket digging force |
kN |
149 |
| Arm digging force |
kN |
111 |
