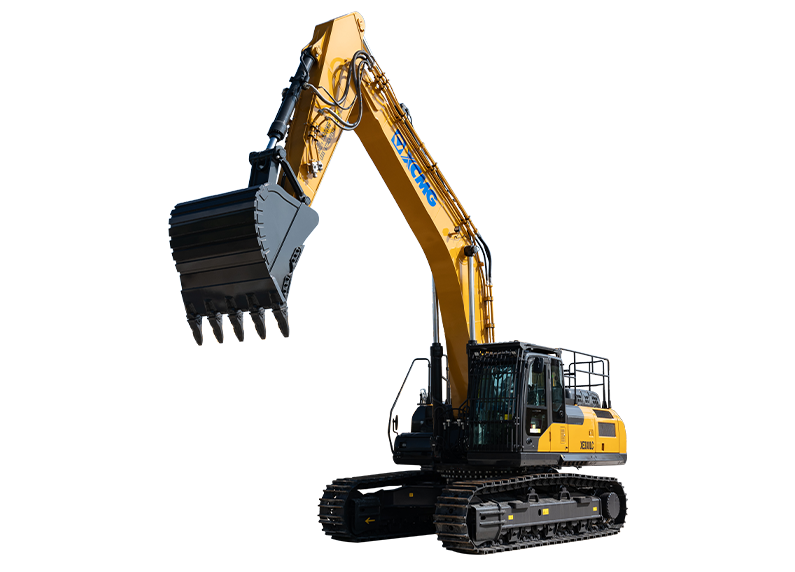

XE380LC adopts electronically controlled postive fow hydraulic system for rapid responses and sensitive operations. Its special engine adopts acustomized torque curve to provide large torque output at low speed, and while providing rush-in power, it greaty reduces fuel consumption and meetsthe power output and fuel economy under heavy load mode. The high-pressure common rail system achieves the best fuelinjection control andeffectively improves the combustion efficiency.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
38200 |
| Rated power |
kW/rpm |
214 |
| Engine model |
- |
Cummins QSL9 |
| Bucket capacity |
m³ |
1.9 |
| Emission standard |
- |
National Stage Ⅲ |
| Maximum torque/speed |
N.m |
1344/1300 |
| Displacement |
L |
8.9 |
| Travel speed |
km/h |
5.6/3.3 |
| Swing speed |
r/min |
9.6 |
| Bucket digging force |
kN |
273 |
| Arm digging force |
kN |
180 |
