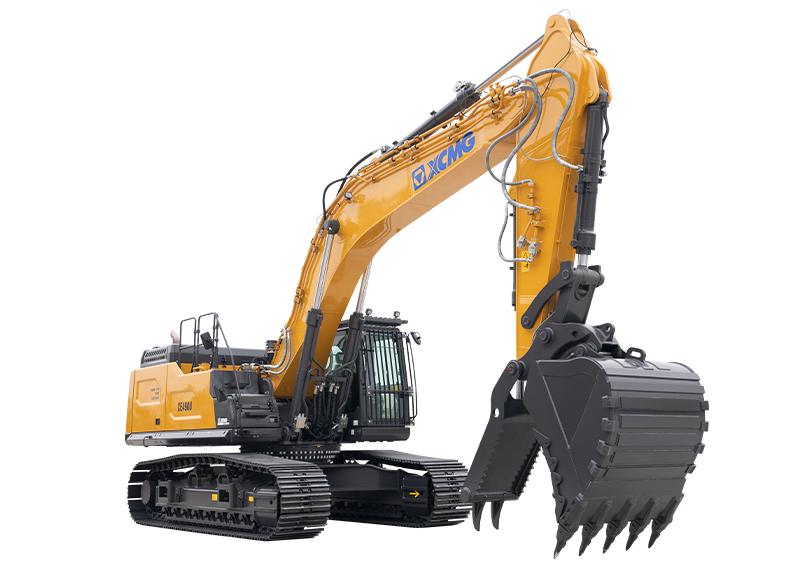

The newly upgraded XE490U builds on its reputation as one of the most sold and appreciated excavators of XCMG. All systems have been designed based on the harmonious matching of sufficient power, hydraulic flow, versatility, low fuel consumption and environmental protection features.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
49800 |
| Rated power |
kW/rpm |
321 |
| Engine model |
- |
Cummins X12 |
| Bucket capacity |
m³ |
2.41 |
| Emission standard |
- |
Tier 4 Final |
| Maximum torque/speed |
N.m |
2034/1400 |
| Displacement |
L |
11.8 |
| Travel speed |
km/h |
5.4/3.2 |
| Swing speed |
r/min |
9.2 |
| Bucket digging force |
kN |
276 |
| Arm digging force |
kN |
215 |
