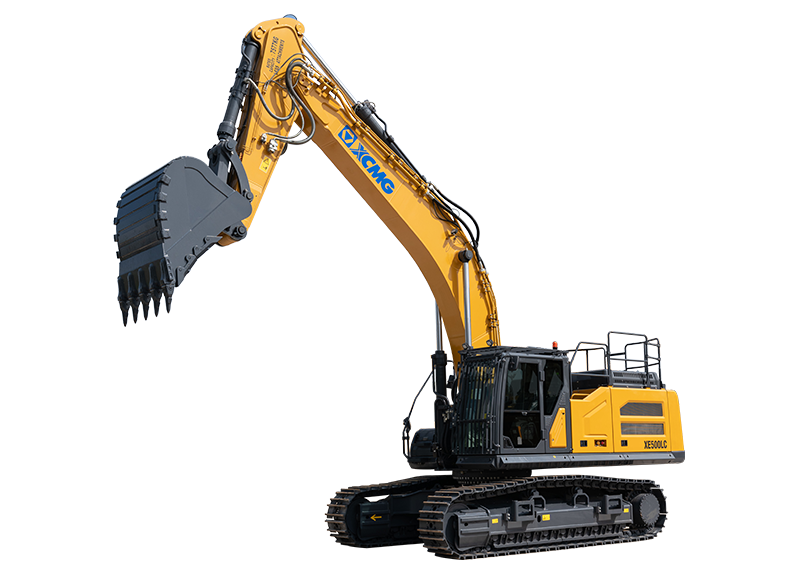

XE500LC adopts electronicaly controled positive fow hydraulic system for rapid responses and sensitive operations. Customized-curve Cumminsengine provides more powerful with 3%- % reduction of fuel consumption and 15 %-26 % reduction of engine stall Stage I emission and lowspeed with high -torque features provide more eficiency, energy saving, and envionmental protection. Original imported large replacement main pumpand main valve can efectively improve 3 %-5 % outpu effciency with heavy load The combination of double swing motors makes the XE500LC morepowertul and more efficient Standard ROPS (Rol- Over- Protective Structure) and OPG-compliant cab with front and top guards to ensure greatersafety for the operator A wide range of afer-sales service system, quick- response rescue mechanism to ensure that you use at ease.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
52000 |
| Rated power |
kW/rpm |
318 |
| Engine model |
- |
Cummins QSX12 |
| Bucket capacity |
m³ |
2.8 |
| Emission standard |
- |
National Stage Ⅲ |
| Maximum torque/speed |
N.m |
1898/1200-1600 |
| Displacement |
L |
11.8 |
| Travel speed |
km/h |
5.4/3.2 |
| Swing speed |
r/min |
9.2 |
| Bucket digging force |
kN |
269 |
| Arm digging force |
kN |
205 |
