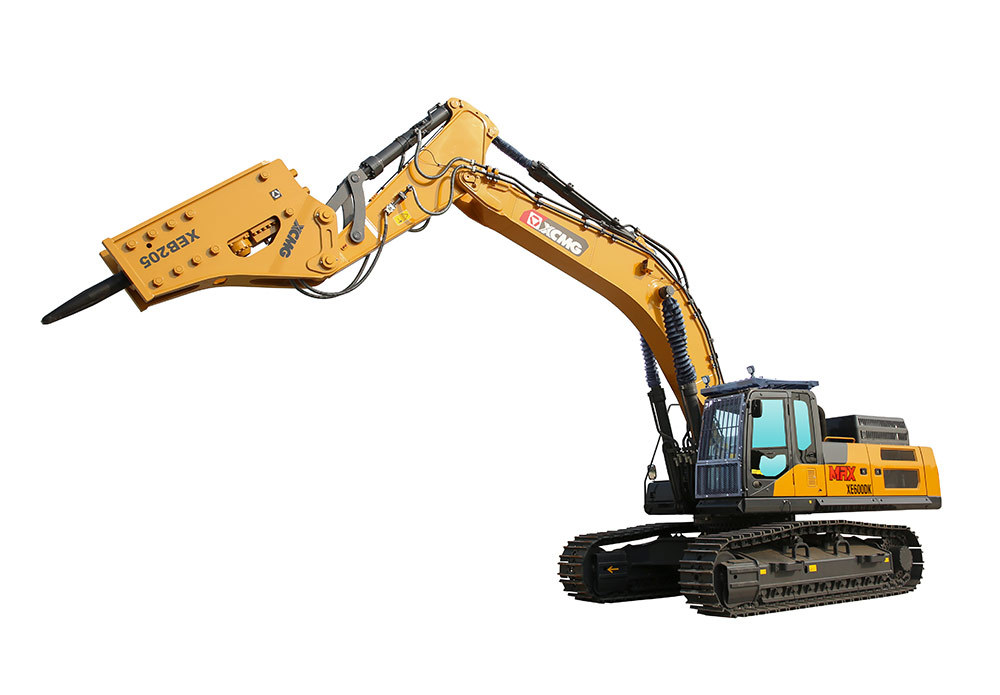

XCMG-customized Commins engine, wih the largest power in the industiy, XE600DK is characterized by low-speed and high-torque, good startingperformance, excellent load -bearing pertomance, and high reliabity 240 cc large-displacemen main pump, with the largest displacement of thesame tonnage machine, Provdes larger tow output, higher speed, and higher breaking pperation effciency. A large rad ator with high temperatureresistance helps improve the heat-sinking capability by 16%. The reinforced design is used for the working device, so the service lie becomes longer.Addifionally, standard configurations of the one-cick starting switch and 8-inch touch screen make the operator comfort to be beter.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
64500 |
| Rated power |
kW/rpm |
277 |
| Engine model |
- |
Cummins QSX12 |
| Bucket capacity |
m³ |
3.6 |
| Emission standard |
- |
National Stage III |
| Maximum torque/speed |
N.m |
1898/(1200-1600) |
| Displacement |
L |
11.8 |
| Travel speed |
km/h |
5.4/3.2 |
| Swing speed |
r/min |
7.9 |
| Bucket digging force |
kN |
330 |
| Arm digging force |
kN |
276 |
