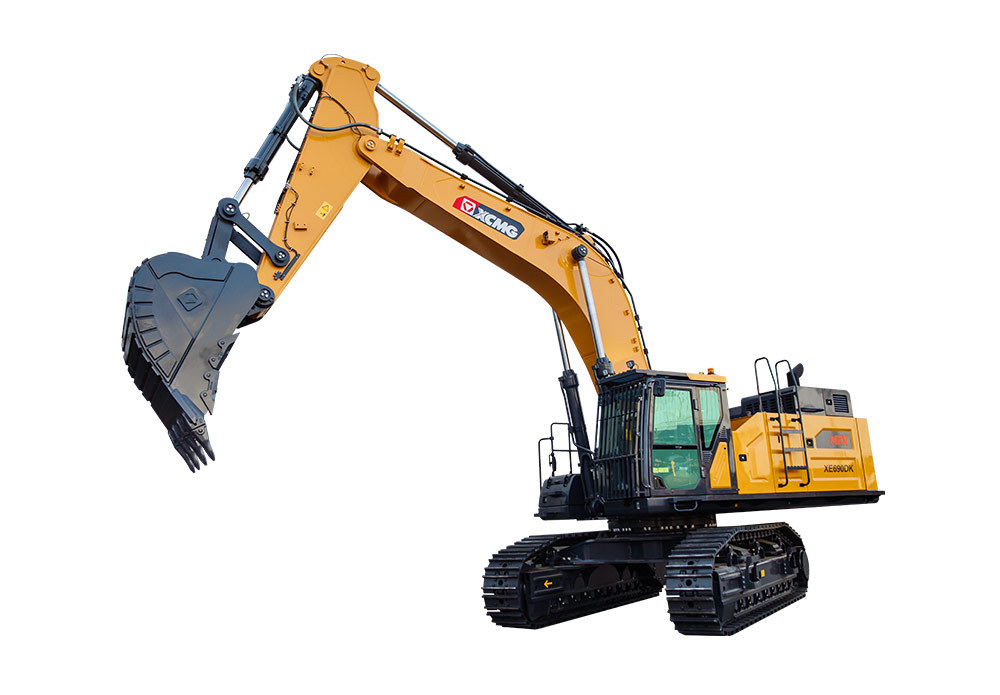

XE690DK adopts customized high-power, large- displacement, low-speed and high-torque XCMG's proprietary heay-duty engine, meeting National-standards of emission, with characteristics of high reliability. fast response, strong power, and suficen power reserve, XE60DK is extremey sutablefor heavy -load working conditions such as mine working, ultra- long warranty period greatly reduces the ful-life maintenance cost of the machine. Withthe bionic memory function equipped in the operation mode, the machine can realize personalized adjustment of compound action, responsiveness.and impact wth high degree of freedom, support a varety of work habits, identity heavy load conditons quicky, and realize powertul mining.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
65800/69800 |
| Rated power |
kW/rpm |
566 |
| Engine model |
- |
Weichai WP17 |
| Bucket capacity |
m³ |
4/5 |
| Emission standard |
- |
National Stage III |
| Maximum torque/speed |
N.m |
3000/(1200-1500) |
| Displacement |
L |
16.72 |
| Travel speed |
km/h |
4.7/2.8 |
| Swing speed |
r/min |
7.1 |
| Bucket digging force |
kN |
382 |
| Arm digging force |
kN |
318 |
