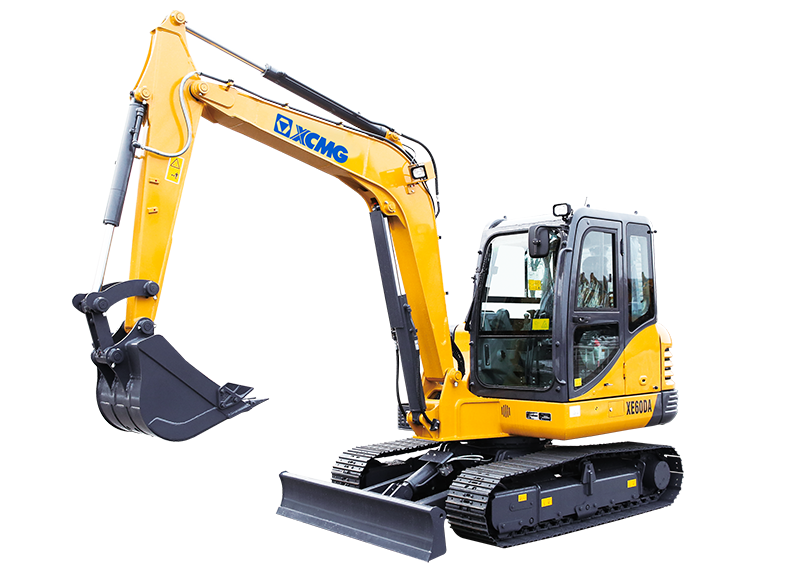

With new generation Yanmar engine and newly optimized fuelinjection system, XE60DA has strong power and low fuel consumption. The cros-grademain pump is perfecty matched with the engine power. The ol pipe is arranged on both sides of the cyinder to prevent the cyinder pipe from beingdamaged due to excessive movement. The three intlligent modes of E/PIB control can easily cope with crushing, light load and heavy load workingconditions. With automatic idle control technology it realizes more than 10% reduction of fuel consumption in operation. With short talil and shortslewing radius, it can realize complex operation together with upper structure slewing.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
6010 |
| Rated power |
kW/rpm |
36.2 |
| Engine model |
- |
Yanmar 4TNV94L |
| Bucket capacity |
m³ |
0.23 |
| Emission standard |
- |
National Stage III |
| Maximum torque/speed |
N.m |
207.4/1000 |
| Displacement |
L |
3.054 |
| Travel speed |
km/h |
4.2/2.4 |
| Swing speed |
r/min |
10 |
| Bucket digging force |
kN |
48.3 |
| Arm digging force |
kN |
32.5 |
