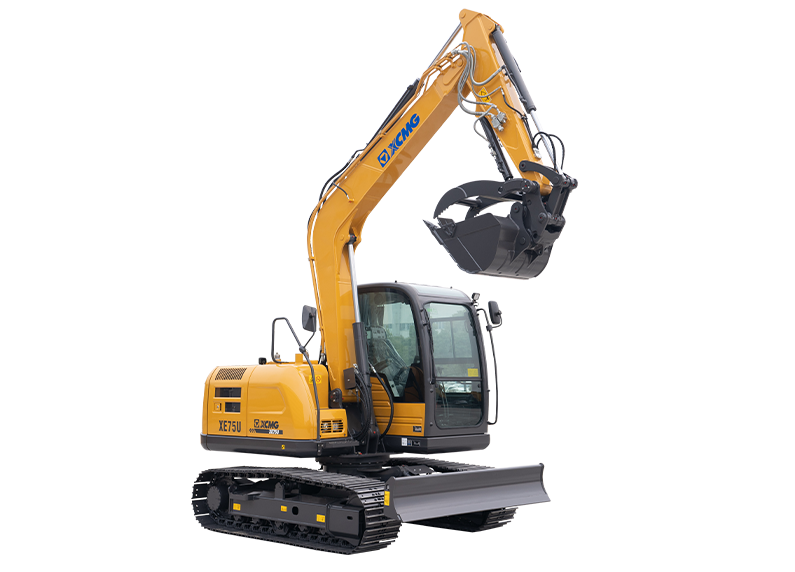

The XE75U hydraulic excavator is highly applicable for hydropower, transportation, municipal engineering, gardening, farmland reconstruction, oil pipeline construction, and other small-scale projects. Designed for suburban and narrow spaces, it operates reliably in ambient temperatures ranging from -15°C to 40°C, working effectively on Grade III and below soil as well as loose materials. Powered by a reliable 60.3 hp Kubota engine, you can count on it to complete tough jobs in various operating conditions. When it comes to efficiency, versatility is a critical factor. That’s why the machine is compatible with multiple attachments that can be installed quickly with its hydraulic quick coupler, allowing you to make full use of every second on the jobsite.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
7700 |
| Rated power |
kW/rpm |
45 |
| Engine model |
- |
Kubota V2607 |
| Bucket capacity |
m³ |
0.33 |
| Emission standard |
- |
Tier 4 Final |
| Maximum torque/speed |
N.m |
225.8/1500 |
| Displacement |
L |
3.3 |
| Travel speed |
km/h |
4.3/2.7 |
| Swing speed |
r/min |
11 |
| Bucket digging force |
kN |
57 |
| Arm digging force |
kN |
38 |
