Description

INTRODUCTION

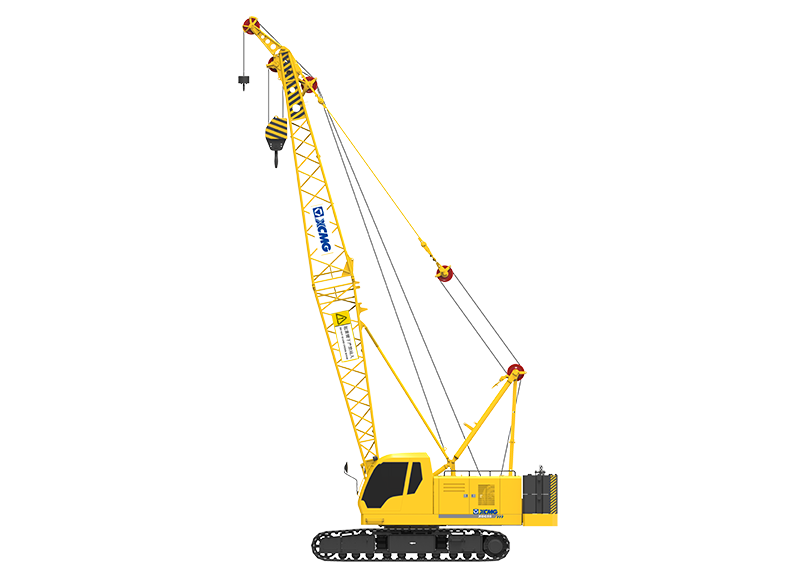

XGC55 crawler crane pays attention to the improvement of lifting performance, working efficiency, transport convenience and operation comfort. The system is mature and reliable with complete safety devices. Fitted with multiple advanced technologies, such as gantry self-pulling function, free fall function, main and auxiliary hook block one-key switch function, engine cold start device, winch monitoring system, hydraulic high pressure bypass filter system, electronic level gauge, lightning protection system, travel direction-change function, boom catwalk and etc, the crane’s performance is superior to that with other brands in various aspects.

PARAMETERS

Item	Unit	Parameter
Boom working condition max. rated lifting capacity	t	55
Max. load moment	t.m	203.5
Max.boom length	m	/
Boom length	m	13-52
Light boom length	-	/
Fixed jib length	m	7-16
Tower jib length	-	/
Max. dimension of single unit in transport state:L×W×H	m	12.04×3.45×3.36
Hoist winch max. single line speed	m/min	/
Engine model	-	Weichai WP7
Rated power	kw	199
Total vehicle mass	Main hook block, 19m boom	46.3
Max. mass of single unit in transport state	t	28.6
