Product Attributes |
Model No.: XN12-8
Brand: Rhinoceros
Origin: China
Certification: CE&ISO
Applicable Industry: Farms, Retail, Construction Works
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): United Kingdom, France, Germany, Philippines, Spain, Australia, South Africa
Showroom Location (in Which Countries Are There Sample Rooms Overseas): United Kingdom, Italy, France, Germany, Philippines, Brazil, Indonesia, Thailand, Romania, Uzbekistan, Australia
Place Of Origin: China
Status: New
Exercise: Crawler Excavator
Operating Weight: 1ton
Bucket Capacity: Other
Warranty Period: 1 Year
Engine Brand: Changchai
Unique Selling Point: High Digging Power
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: Ordinary Product
Core Component Warranty Period: 1 Year
Core Components: Engine, Motor, Pump
Main Pump: CBK-F6.8
Swing Motor: BM1-200
Wheel Track: 1130mm
Rubber Track Width: 180mm
Warranty: Full one year
Loading: 12 units in 40FT
Certification: CE ISO
Engine Type: Single cylinder diesel oil engine
Rated Power: 7.5KW
Delivery Time: Within 20days
Packaging & Delivery |
| Selling Units | Piece/Pieces |
| Package Type | Wooden packing /container |
Product Description |

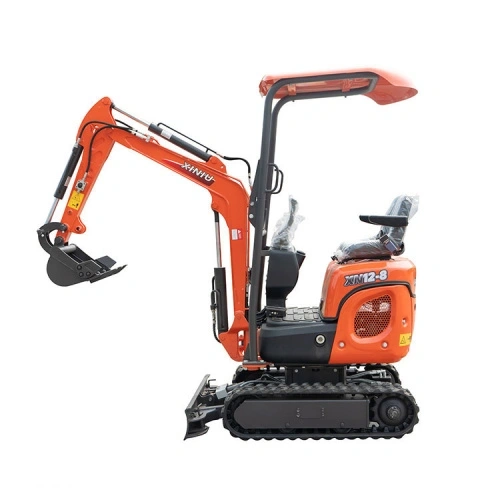

Rhinoceros Mini Excavator XN12-8 with Swing boom
Chinese Koop / Changchai engine, Japanese Kubota engine for option;Swing boom & extendable chassis for option;1000kg,0.25cbm
XN12-8 Specification
|
SPECIFICATION
|
MAIN DEMENSIONS
|
OPERATING RANGE
|
|||
|
Model
|
XN12-8
|
Overall dimension( LxWxH)
|
2850x954/800x2211 mm
|
Max. Digging depth
|
1568 mm
|
|
Brand
|
RHINOCEROS
|
Wheelbase
|
914 mm
|
Max. Vertical digging depth
|
1377mm
|
|
Machine Weight
|
1000kg
|
Total length of track
|
1234mm
|
Max. Digging height
|
2646 mm
|
|
Bucket capacity
|
0.025cbm
|
Upper chassis ground clearance
|
453mm
|
Max. Dumping height
|
1876mm
|
|
Bucket width
|
380mm
|
Counterweight turning radius
|
660 mm
|
Max. Digging radius on ground
|
3039mm
|
|
Engine
|
Kubota |
Track width
|
180 mm
|
Min. Rotation radius
|
1510mm
|
|
Rated power
|
7.5 kw/3000r/min
|
Track height
|
320 mm
|
Max. Lifting height of dozer blade
|
141 mm
|
|
Swing speed
|
10.5rpm
|
Height of seat to ground
|
1525mm
|
Max. Digging depth of bulldozer blade
|
200mm
|
|
Max. Grade ability
|
30°
|
Boom swing - left
|
363mm
|
|
|
|
Pump type
|
Gear pump
|
Boom swing - right
|
325mm
|
|
|
|
Pressure
|
16MPa
|
|
|
|
|
|
Flow rate
|
16.6L/min
|
|
|
|
|
Available attachments
