Product Attributes |
Model No.: XN18
Origin: China
Certification: CE & ISO
Type: Crawler Excavator
Usage: GM Excavator
Bucket: Backhoe
Transmission: Hydraulic Transmission
Size: Small-Scale
Certification: ISO9001: 2000
Condition: New
System Pressure: 22MPa
Bucket Capacity: 0.045CBM
System Flow Rate: 39.6L
Hydraulic Oil No.: 15w-40
Wheel Basel: 1130mm
Packaging & Delivery |
| Selling Units | Bag/Bags |
| Package Type | packageWoonden |
Product Description |
Net weight :1600kg ; Operation weight / gross weight :1800kg
Engine : Japanese Yanmar engine,orginal imported; Three cylinders,water cooler
10kw: Euro III emission standard - 3TNV70
11.2kw:Euro V / EPA III emission standard -3TNV74F
Max. digging depth:2150 ; Max.digging height: 3275mm

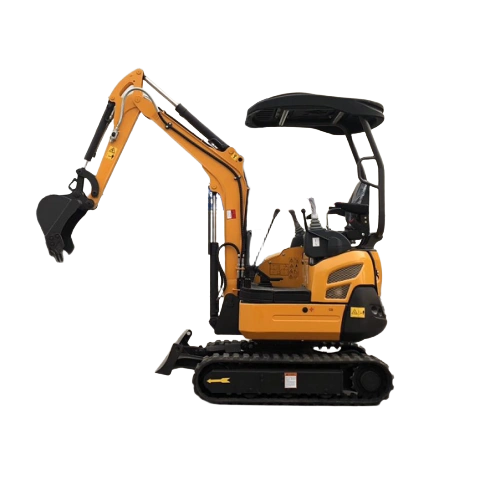

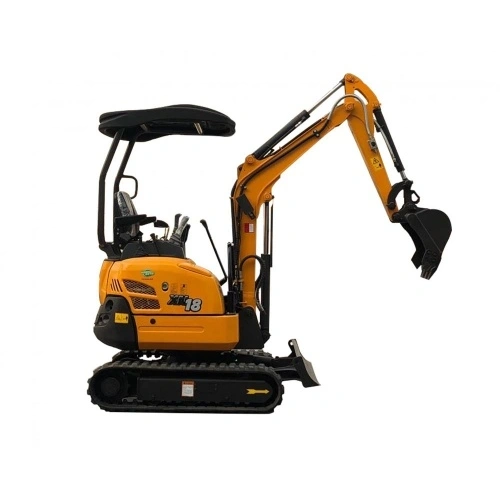

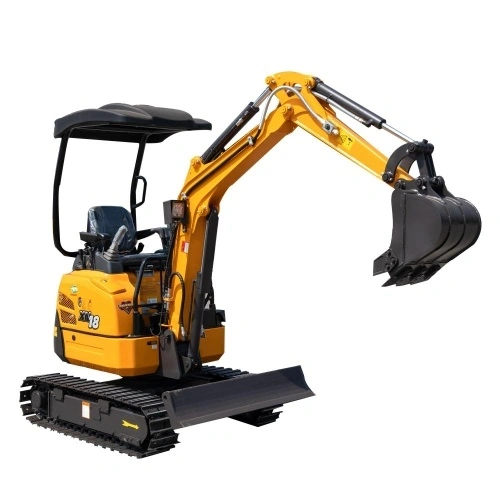

Mini excavator XN18 Details specification |
| Overall dimension ( LxWxH) | Unit (mm) | ||
| a | Wheelbase | 1130 | |
| b | Total length of track | 1450 | |
| c | Platform ground clearance | 437 | |
| d | Counterweight turning radius | 790 | |
| e | Chassis width | 1110 | |
| f | Track width | 230 | |
| g | Track height | 320 | |
| h | Length | 3160 | |
| i | Height (From seat to ground) | 1637 | |
| j | Height (From seat to ground) | 2377 | |
| SPECIFICATION | Unit | ||
| Operating Weight | 1600 kg | ||
| bucket capacity | 0.045m³ | ||
| Working device form | backhoe | ||
| engine | Model | Yanmar 3TNV70/3TNV74F | |
| Displacement | 0.854L | ||
| Rated power | 10.3kw/11.2 kw | ||
| Maximum torque | 51.9N.m/1600 r/min | ||
| Speed/Digging force | Max.travel speed | 1.5km/h | |
| swing speed | 11rpm | ||
| Max. Gradeability | 30° | ||
| Bucket digging force | 10.5KN | ||
| Bucket arm digging force | 6.5KN | ||
| Maximum traction | 13.5KN | ||
| Ground specific pressure | 40Kpa | ||
| Track material | Rubber/Steel track | ||
| Type of track tension device | Butter oil cylinder | ||
| Hydraulic and liquid capacity | Pump type | Piston pump | |
| Working pressure | 22Mpa | ||
| Flow rate | 39.6L/min | ||
| Hydraulic oil tank capacity | 15.3L | ||
| Engine fuel tank capacity | 2.8(1.3)L | ||
| Fuel tank capacity | 19L | ||
