INTRODUCTION |

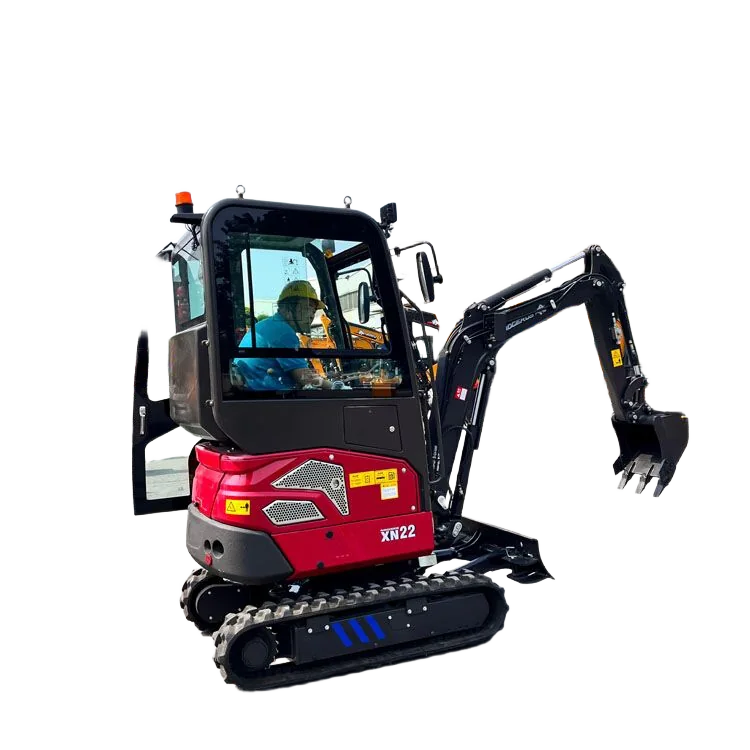

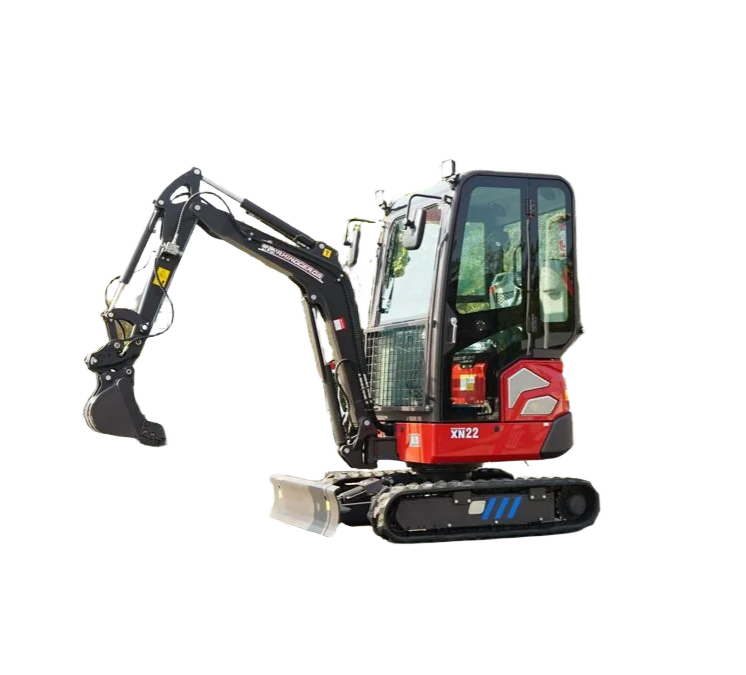

Unique for such a small size, the digging power provided by the latest Japanese 14 kW Kubota D1105 engine allows the XN22 to cope with various work tasks not inferior to more expensive analogues. The XN22 rubber tracks are equipped with a short-pitch tread and have the ability to expand up to 1275mm for better stability.
Key Specifications |
| Weight | 2030 kg |
| Standard bucket capacity | 0.05 m³ |
| Digging depth | 2150/2350 mm |
| Engine | KUBOTA D1105 |
| Power | 14 kW |
| Movement Speed | 2.2-3.3 km/h |
| Main Pump | Axial piston |
| Pump Capacity | 39 l/min |
Features |
 KUBOTA D1105 Diesel Engine (Japan)Japan's Kubota Super Mini Series, the most compact liquid-cooled multi-cylinder diesel engine for industrial applications, meets the EPA Tier 4 emission emission standard. These are the most stringent environmental standards for this class of engines worldwide. Kubota's Super Mini series engines have been used as a power plant in a wide range of applications for 25 years. These engines have become a benchmark in the compact diesel engine market. |
 Boom RotationIn addition to turning the cab, the RHINOCEROS XN22 mini excavator has a boom rotation. This solution allows you to significantly increase the maneuverability of equipment when performing work and allows you to transport a mini-excavator in a small machine. At the same time, the boom with the bucket can be shifted at an angle of 50° to the left and 55° to the right. The mechanism itself has a cast iron alloy structure, and not welded like competitors. This design significantly increases strength and durability. |
 2-speed travel motorsThe travel motors of the RHINOCEROS XN22 mini excavator have 2 speeds - one of which has more traction, the other is mainly designed for faster movement on the construction site.
|
 Sliding Crawler ChassisThe RHINOCEROS XN22 mini excavator can shift the chassis, drive through a narrow opening or door, and inside the room it spreads the chassis for greater stability and starts working. Thanks to this, you can use more powerful equipment, solve the problem faster and reduce the cost of the project as a whole.
|
 PILOT Electro-Hydraulic JoysticksThe PILOT control joysticks provide the RHINOCEROS XN20 mini excavator with smooth adjustment and are designed with ergonomics, ease of use and increased operator comfort in mind. The location of the controls allows the operator to adopt a comfortable working posture to reduce fatigue.
|
 Hydraulic outlet with reverse ( 2-flow hydraulic line )The 2-flow hydraulic line of the RHINOCEROS XN22 mini excavator is designed to connect and work with hydraulic attachments, such as hydraulic rotators (hole drills), log grippers, vibrating loaders, hydraulic hammers, etc. It is very easy to control the additional two-flow hydraulic line using the floor pedal. Unlike a single-flow hydraulic line, where the flow of hydraulic working fluid always moves only in one direction, in a hydraulic line, the flow of working fluid moves in two directions. |
