Product Attributes |

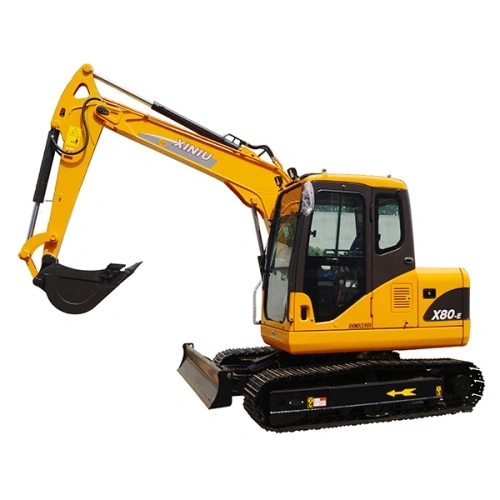

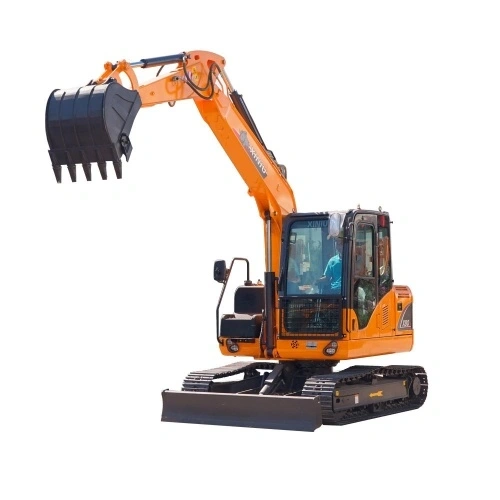

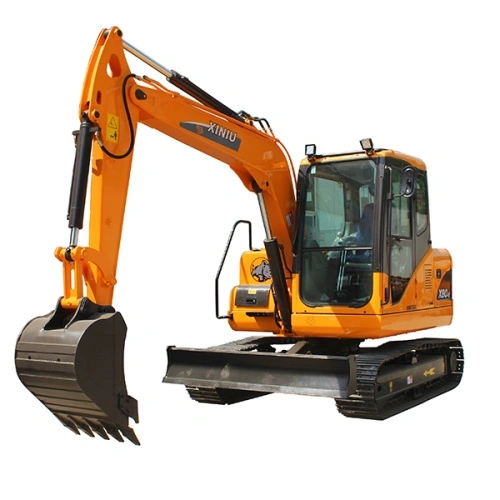

Model No.: XN80E
Origin: China
Certification: CE ISO
Type: Crawler Excavator
Usage: GM Excavator
Bucket: Backhoe
Transmission: Hydraulic Transmission
Drive Type: Electric Drive
Bucket Capacity: 0.3cbm
Size: Small-Scale
Certification: ISO9001: 2000
Condition: New
Model: XN80E Crawler Excavator
Machine Weight: 7000 Kg
Loading: Max. 3 Units In A 40HQ
Max. Digging Depth: 3540mm
Engine Brand: Japanese YANMAR
Packaging & Delivery |
|
Selling Units |
Bag/Bags |
|
Package Type |
container |
Main Dimensions |
| MAIN DIMENSIONS | UNIT | XN80-E |
| Operating Weight | kg | 8000 |
| Overall Dimension | mm | 5830x2150x2640 |
| Cab Dimension | mm | 1300x950x1520 |
| Bucket Capacity | cbm | 0.3 |
| SYSTEM CONFIGURATION | ||
| Engine Type | YANMAR(4TNV94L-BVBKC) | |
| Rated Power/Speed | kw | 33.7 |
| No. of Cylinders/Type | 4 cylinder/in line | |
| Starting Type | Electric 12V | |
| Hydraulic Main Pump | DOOSAN | |
| Hydraulic System Pressure | MPa | 22 |
| Hydraulic System Flow | L/min | 150 |
| Pilot Pump | DOOSAN(TGP04) | |
| Valve | EATON | |
| Swing Motor | EATON | |
| Max Swing Speed | r/min | 9r/min |
| Travel Motor | EATON | |
| Speed | km/h | H:3.7km/h; L:2.3/km/h |
| Bucket Digging Force | Kn | 58 |
| Arm Digging Force | Kn | 42 |
| Working Fuel Consumption | L/h | 7.08 |
| Diesel Oil Tank Capacity | L | 167 |
| hydraulic Oil Tank Capacity | L | 125 |
| OPERATION RANGE | ||
| Boom Length | mm | 3300 |
| Arm Length | mm | 1750 |
| Radius to Rear End | mm | 1570 |
| Ground Clearance | mm | 345 |
| Blade Dimension | mm | 2024x345 |
| Max Digging Height | mm | 6320 |
| Max Dumping Height | mm | 4440 |
| Max Digging Depth | mm | 3540 |
| Max Digging Radius | mm | 6240 |
| Standard Machine With A/C | A/C | Standard |
| Packing Way | 2 units in a 40HQ | |
| Passed Certificates | CE ISO |
