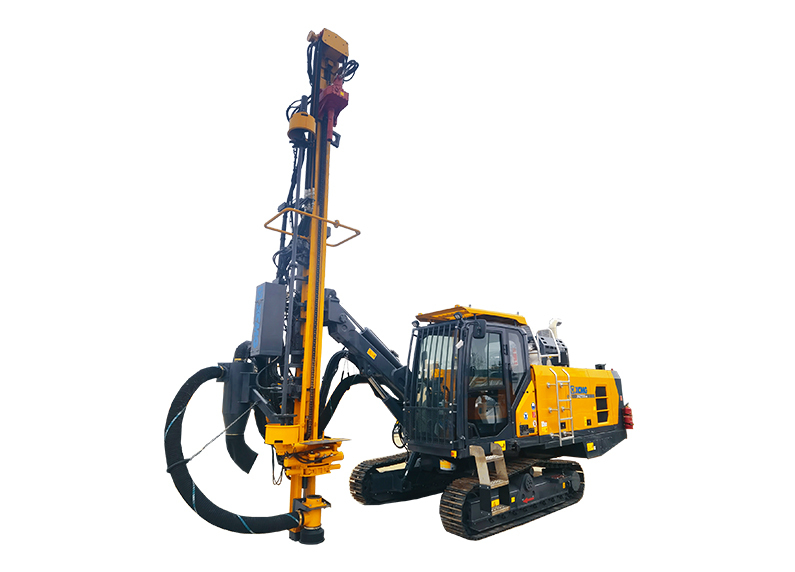

The XQZ130 surface down-the-hole drill rig is a small-sized integrated down-the-hole drilling machine mainly developed for quarries, cement mines and other mines, which can complete the drilling of main blasting holes and pre-splitting holes. It has the characteristics of high drilling efficiency, wide application range, etc.
| Item |
Unit |
Parameter |
| Drilling diameter |
mm |
Φ90-Φ130 |
| Max. hole depth |
m |
28 |
| Rated power |
kW |
242 |
| Engine |
- |
Cummins QSL8.9-C325 |
| Emission standard |
- |
CN III |
| Air volume |
m³/min |
16.9 |
| Air compressor |
- |
JIUYI |
| Rotary torque |
N·m |
2865 |
| Rotary speed |
rpm |
110 |
| Weight |
kg |
17000 |
| Transport dimensions |
mm |
9980×2500×3300 |
