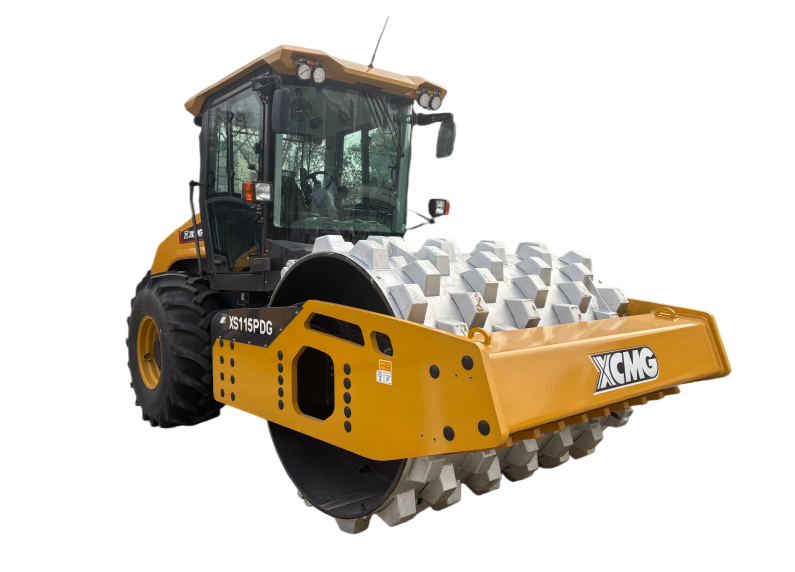

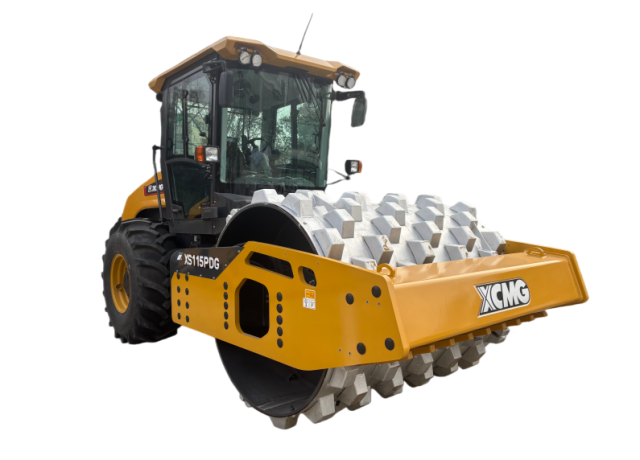

XS115PDG single drum vibratory roller is a double pump driven heavy duty, self-propelled, single drum, full hydraulic double drive single drum vibratory roller. The product meets the drain requirements of Stage V in Europe and T4f in North America. It has the characteristics of strong driving capacity, large exciting force, high compaction efficiency, good compaction quality, etc. It is widely used for compaction operation of foundation layer, sub-foundation layer and rock fill in highways, railways, airports, ports, dams and industrial construction sites.

PARAMETERS

Item	Unit	Parameter
Engine	-	Cummins
Rated power	kW	115
Rated speed	r/min	2200
Emission	-	EU Stage V/T4F
Operating Weight	kg	11500(XS115G) / 13000(XS115PDG)
Working width	mm	2130
Dimensions	mm	5,990 x 2,300 x 3,150
Working speed	km/h	0 ~ 11.00(XS115G) / 0 ~ 11.85(XS115PDG)
Gradeability	%	65(XS115G) / 62(XS115PDG)
Vibration frequency	Hz	30/35
