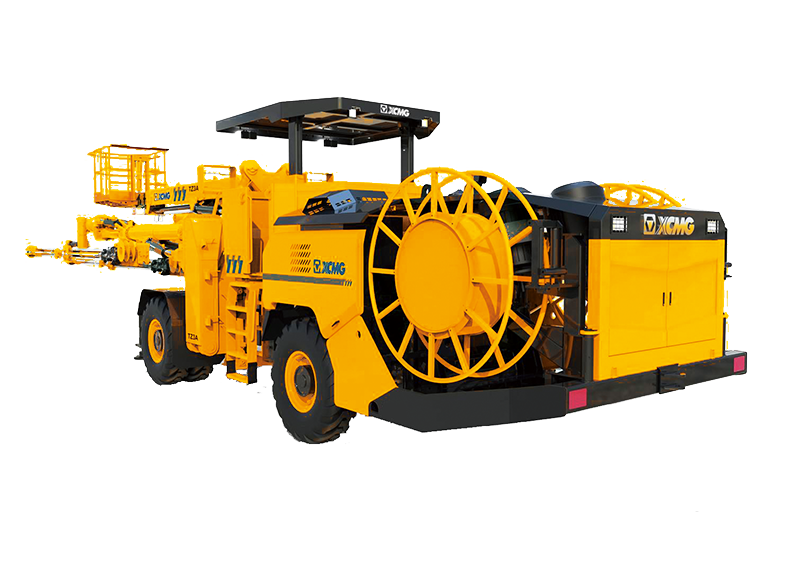

XTD3130 three boom drill jumbo is mainly suitable for the tunneling construction, underground mining and other underground projects. It can be used for drilling of blasting holes, anchor bolt holes, and slotted holes. There is also a platform available, which can be used in the placing of explosives, anchor bolts and other appliances. The maximum coverage area is up to 180 ㎡.
| Item |
Unit |
Parameter |
| Rock drill brand & model |
- |
Montabert HC109 |
| Impact power |
kW |
18.8 |
| Coverage area |
width×height |
15725×13075 |
| Installed power |
kW |
190 |
| Power of engine |
kW |
191 |
| Engine manufacturer |
- |
Cummins |
| Emission standard |
- |
CN IV |
| Cable length |
m |
80 |
| Total weight |
t |
48.2 |
